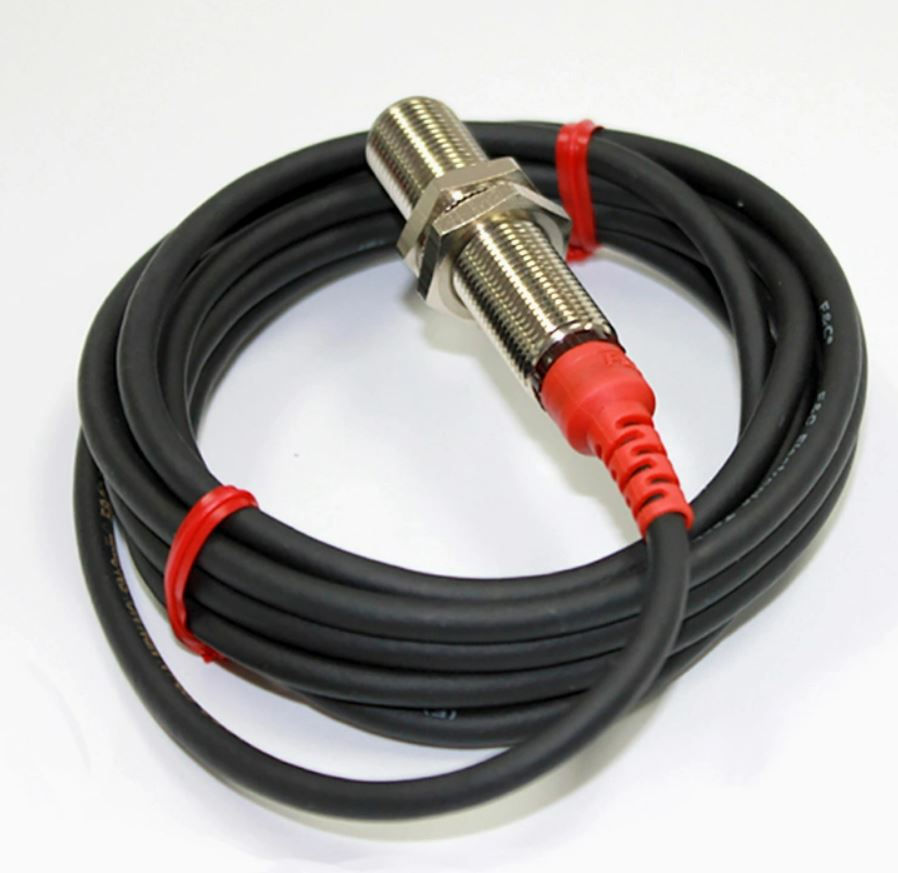

Sensor inductivo modelo F3L-12KS04-P R2M, cuerpo M12 x 55mm largo, tipo enrasado de alcance 4mm, salida PNP contacto NA, conexión por 2 mt de cable de 3 hilos, alimentación 12-24 Vdc, frecuencia de respuesta 500 Hz, temperatura de trabajo -20~+70. IP 67.
F3L-12KS04-P R2M
$0,00Precio
- Mounting Method:Flush
- Hysteresis:Less than 10% of sensing distance
- Frequency:1000HZ
- Standard Sensing Object:12*12*1mm(Iron)
- Operating Voltage:12-24VDC
- Current Consumption:Less than 8mA (No Load)
- Load current:100mA Max at 24 VDC
- Residual Voltage:Less than 1.5VDC (No Load)
- Leakage Current:Less than 0.01mA
- Protection Degree:IP67
- Operating Temperature:-25ºC-70ºC (No Icing)
- Reverse Polarity Protection:Yes
- Short Circuit Protection:Yes
- Material:PBT and SUS 304
- Connection Method:Dia 3mm*2M/-3wires
